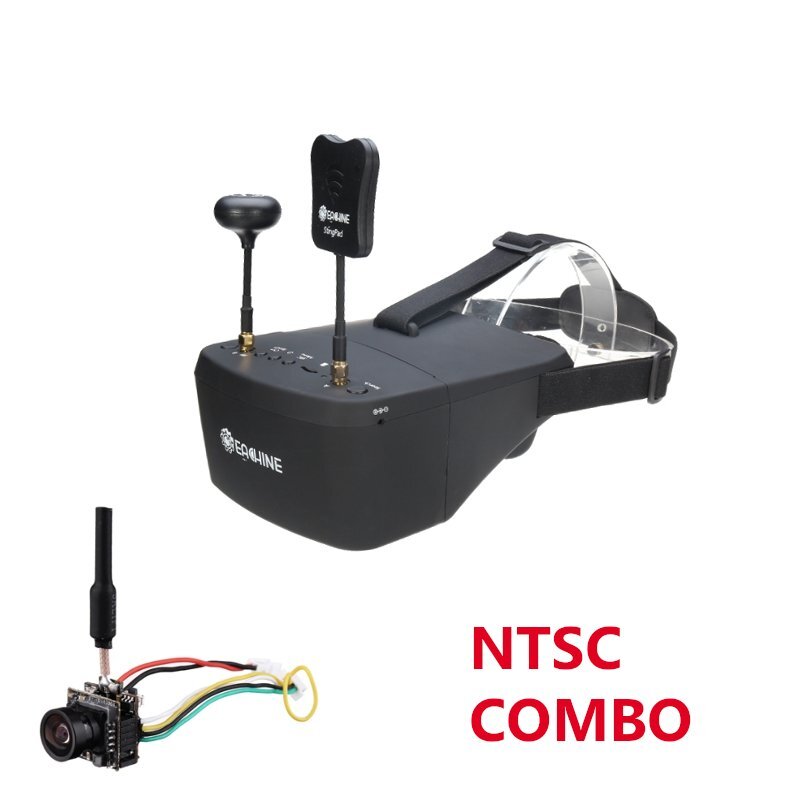

Eachine EV800D 5.8G 40CH Diversity FPV Goggles 5 Inch 800*480 Video Headset HD DVR Build in Battery
Direct purchase from the factory
Oñemo'ã porãva
Jopói libre
Mba'e rembosa'irã
Mba'e devolución reheguaJopói libre
Eg̃uahẽ porã Roymall-pe, ne renda jopói porã joguápe. Rohechakuaa ha roaguyje ne pytyvõ, ha roñe'ẽ aguyje jopói libre ndive. Ejogua vove, rejoguáta mba'eporã porã ha reñemomba'e jopói libre ndive. Eheka ore apopyrã ha ejuhu ne jopói perfecto.Mba'e rembosa'irã
Rojapo tembiapo rembosa'irã 2 ára peve.Ára sapy'agua oñemboare 2 ára.Oñemboare 5-7 ára mba'apo (Lunes a Viernes).Oñemboare sapy'a tetã ambuéva rupi.1. Devolución ha cambio
Roñemoneĩ devolución Roymall-gui añoite. Jopói libre ndojejapói devolución. Ejapo devolución oimeraẽva jopói ojeipurúva'ỹre.Roñemoneĩ devolución 3-5 ára mba'apo peve.Jopói personalizado ndojejapói devolución.Eñe'ẽ ore ndive. service@roymall.com térã Whatsapp: +86193598494712.Devuelta
Reguereko devuelta oimeraẽva jopói ojeipurúva'ỹre. Mba'e rembosa'irã ndojejapói devuelta.Eñe'ẽ ore ndive. service@roymall.com térã Whatsapp: +8619359849471We are sorry to inform you that due to the continuous increase in chip prices, we have to adjust the sales price from December 18, 2024. Thank you for your understanding.
New version comes with 3.7V 2000mAh batteryuff0csend randomly
EV800D vs EV800DM
Comparison | EV800D | EV800DM |
Weight | 362g without antenna | 320g without antenna |
DVR | 720*576px | 720*576px |
Diversity | Yes | Yes |
Screen size | 5.0 inch | 3.0 inch |
Screen resolution | 800*480 | 900*600 |
Ratio | 16:9, 4:3 | 4:3 |
Separable Design | Removable screen, can be used as a monitor. | NO |
Support Tripod | Yes, with 1/4 inch screw hole | NO |
Varifocal | NO | 20mm focal length adjustable; |
Glasses Fit | NO | Fit for wear with 140mm*40mm glasses; |
Battery | 7.4V/1200mAhor 3.7V/2000mAh | 3.7V/2000mAh |
Features:
EV800D Goggles
- Built-in with super HD DVR up to 720*576px resolution;
- Diversity Goggles 40ch Auto-Searching;
- Two system (Display/Re cord duo core separated chipsets ) ensure no delay in displaying and no frame lost in recording(please use C10 card to ensure the full frame recording);
- Work friendly with p ilot-OSD, no block on the important flying OSD information;

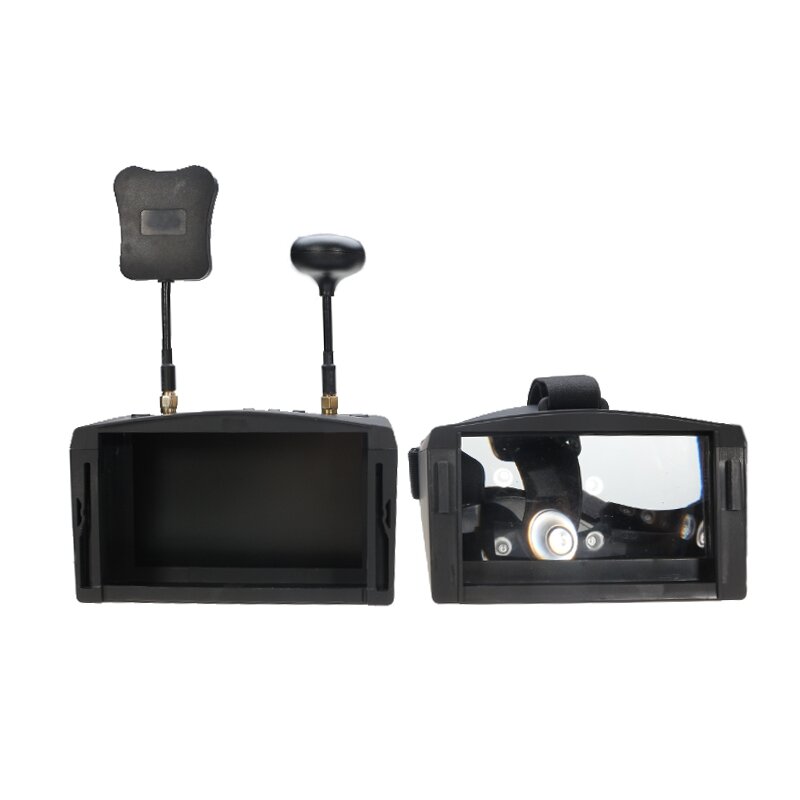

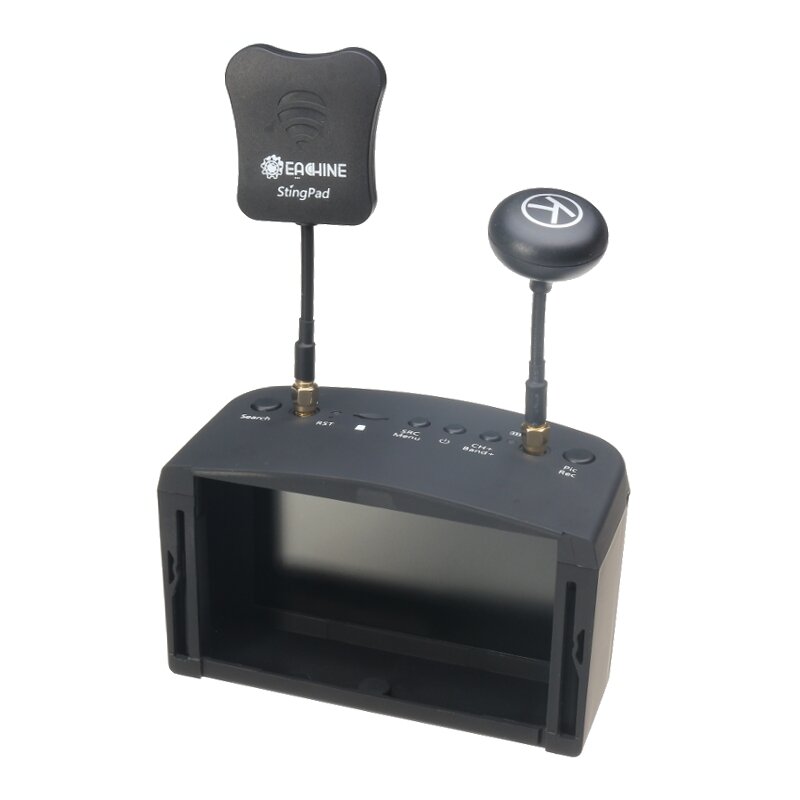

- Separable design, 5 inch screen can be used as small monitor on radio controller or with tripod;
- HD high brightness 5 inch LCD specially tuned for FPV racing;
- Diversity function, Built-in super sensitive 5.8GHz 40ch receiver module;
- Advanced auto-searching function and the working frequency show on screen;
- Built-in 7.4V 1200mAh/3.7V/2000mAh battery, each full charge offer 2 hours working time;
- Wide rang re-charge voltag 11-20V; US plug
- Accept 2S or 3S batteries as back-up power source, to prolong the working time;
- Nice ergonomic design and fit different faces;
- Super-wide visible angle up to 82 degree;
- 92% transparent lens adopted, no distort, no blur on the edge of screen;
- Light weight 375g with 3.5 hr 1200mAh battery, RTF for any scale racing game;
- 5 Inch 800*480px HD high brightness LCD
TX06 AIO Camera
- OSD configuration using FC Uart
- Super small and lightweight
- 700TVL high picture quality,Low Power Consumption.
- 48CH channel
- Power by 1S lipo battery
- Plug and play,designed for DIY
- Super Mini 5.8GHz 48CH FPV Transmitter +700TVL FPV Camera+Brass dipole Antenna+OSD
Appearance | Dimension: 180*145*82mm Weight: 362g without antenna Belt : three-way adjustable belt |
| Specification | Build in DVR (C10 card required) |
| Diversity | - 90dB Super sensitiveness in 2pcs RX5808 PRO modules Great performance when two types (Linear and Omni) antennas are used |
| Display | Screen size: 5.0 inch Screen resolution: 800*480(No blur after enlarge by the lens) Screen brightness: 600cd/ m2 with special high brightness backlight LED for outdoor FPV Ratio : 16:9, 4:3 View Angle: 140/120 degree(Horizontal/Vertical) |
| Lens | 3x boost of the video to acquire intense feel-in-there video; 92% transparent rate distort if light; |
| Battery | Built-in 7.4V/1200/3.7V/2000mAh mAh battery; Typical recharging voltag is 12V |
TX06 AIO Camera :
| Transmitting Power: | 25mW |
| Frequency: | 5.8G 48CH |
| Input Voltag: | 3.3-5.5V |
| Current Consumption: | 280mA(Typical) |
| Camera Resolution: | 700TVL |
| Video Format: | NTSC/PAL |
| Field of View : | 120° Viewing Angle |
| Antenna Dimensions: | 35mm*4.2mm diameter |
| Antenna: | Brass dipole Antenna |
| Frequency: | 5.8GHz 6 bands 48 channels |
| With Goggles : | 5474-5945MHZ |
| Size: | 14*13.8mm(L*W) |
| Weight: | 2.8g |
Frequencies (5.8GHz)
| CH | CH 1 | CH 2 | CH 3 | CH 4 | CH 5 | CH 6 | CH 7 | CH 8 |
| GROUP | ||||||||
| A or FR1 | 5865 MHZ | 5845 MHZ | 5825 MHZ | 5805 MHZ | 5785 MHZ | 5765 MHZ | 5745 MHZ | 5725 MHZ |
| B or FR2 | 5733 MHZ | 5752 MHZ | 5771 MHZ | 5790 MHZ | 5809 MHZ | 5828 MHZ | 5847 MHZ | 5866 MHZ |
| C or FR3 | 5705 MHZ | 5685 MHZ | 5665 MHZ | 5645 MHZ | 5885 MHZ | 5905 MHZ | 5925 MHZ | 5945 MHZ |
| D or FR4 | 5740 MHZ | 5760 MHZ | 5780 MHZ | 5800 MHZ | 5820 MHZ | 5840 MHZ | 5860 MHZ | 5880 MHZ |
| R or FR5 | 5658 MHZ | 5695 MHZ | 5732 MHZ | 5769 MHZ | 5806 MHZ | 5843 MHZ | 5880 MHZ | 5917 MHZ |
Package Included : (optional)
Goggles including :
1 x EV800D 40CH 5.8G Diversity Goggles with DVR
1 x Clover Antenna
1 x Panel Antenna
1 x Battery Charger
1 x 3S to DC Power Cable
1 x User Manual
1 x Clean cloth
1 x Bag
Camera including
1 x Eachine TX06 700TVL FOV 120 Degree 5.8Ghz 48CH Mini FPV Camera AIO Transmitter For RC Drone
1 x Molex 1.25mm to JST-DS 2.0mm 2P Power Cable
